INTERIOR ARCHITECTURE 2
PROJECT 3 -FINAL PROJECT
A[live] Capsule
40%- INDIVIDUAL
​
What is a container? A large metal box of a standard designs and size used for the transport of goods by road,sea or air.
TASK: make a COMPACT LIVING, LIGHTWEIGHT, SPACE EXPRESSION, SPACE FUNCTION all in the container.
become a CONTAINER CAFE .
sketches/idea development

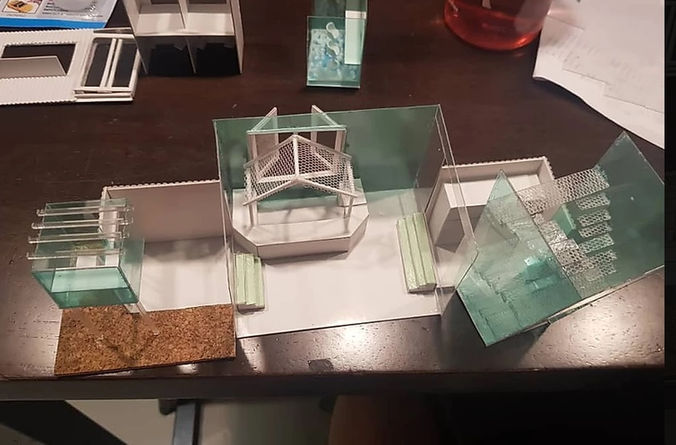

MOCK UP MODEL
scale 1:75 /scale 1:50
WHERE ?
​
SEKEPING SERENDAH

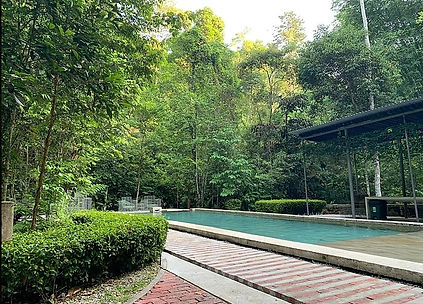

near to the swimming pool of timber house. The reason for choosing it being built near to the swimming pool is because there is a very huge suitable space for party and the weather will be cooling at night.
WHEN?
Open daily from 10am-8pm
close on Tuesday
WHO?
specially cater for couples.
WHAT?
Main activity and attraction of the cafe is the "flying fox game" which is sliding down from the 2nd floor to reach the ground within 12seconds.
DOUBLE SWEETNESS CAFE
IS SPECIALLY NAMED TO IMPLICATE BLISSFUL AND HAPPINESS FOR COUPLES.
PROGRESS
THIS PROJECT LASTS FOR 8 WEEKS
FINAL OUTCOME -AFTER
2 shipping containers of sizes of 12000mm/6000mm (L) x 2850mm (H) x 2400mm (W) at the site of Sekeping Serendah.

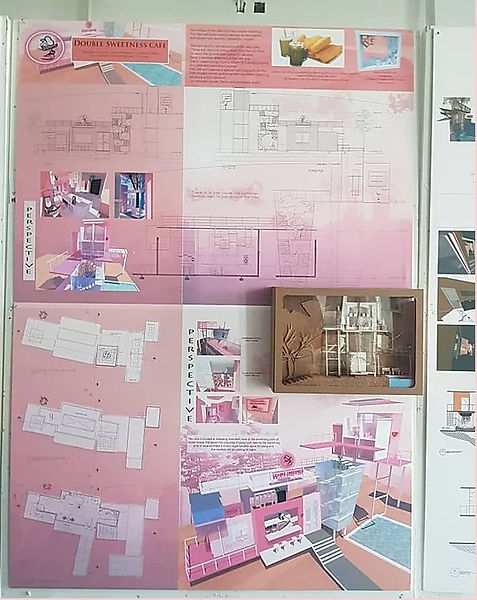

PRESENTATION BOARD -2A0
BEFORE
PERSPECTIVES
SKETCH-UP
RENDER
​
THIS IS MY FIRST TIME TO USE SKETCH UP
FINAL PRESENTATION BOARD
​
IN MY OPINION , PINK COLOR REPRESENT LOVE. THAT IS WHY I HAVE CHOSEN THIS COLOR AS THE THEME.

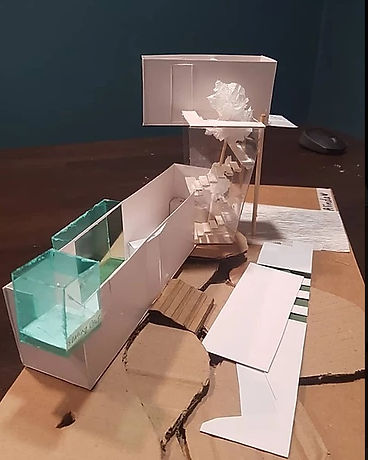

SECTION MODEL
(A3 SIZE)
Food & Drink PLATING
food- YOU ZHA KUEH
drink- GENG CHAO BING
GENG CHAO BING is a coffee from Bentong, this is a
mixture of nescafe and milo.
YOU ZHA KUEH is a chinese donurt, which
always come in pair.
​
The set comes with 2 bottles of coffee and 2 doughnuts at a special price of RM22 only. The reason for using the bottle instead of cup is because the bottle can be recycled. Further if customers like the bottle they can always take it away. It is convenient.
MENU
3 PROJECTS :
1. WALL DISPLAY(SCALE 1:20)
2. SECTION MODEL (SCALE 1:50)

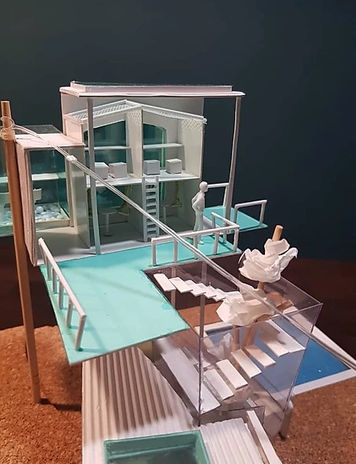

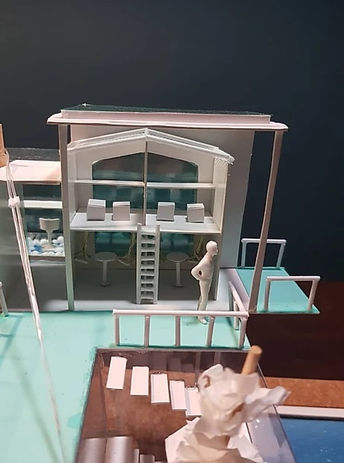

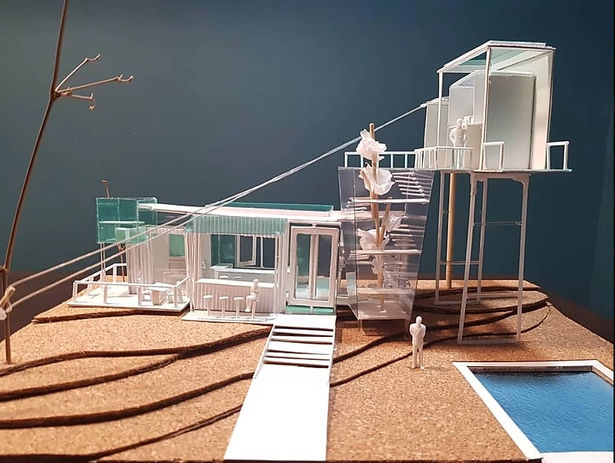

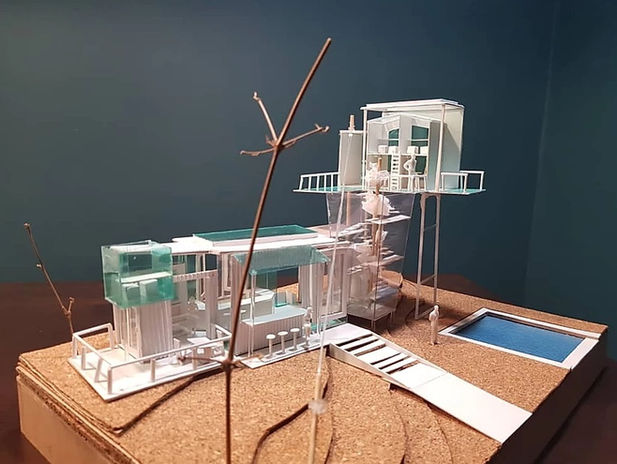

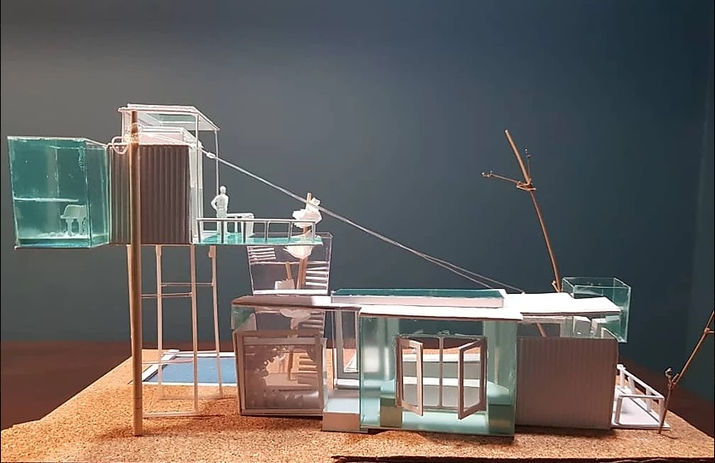

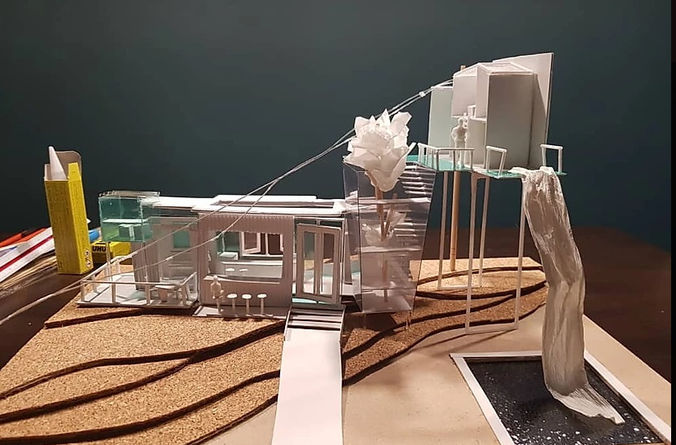

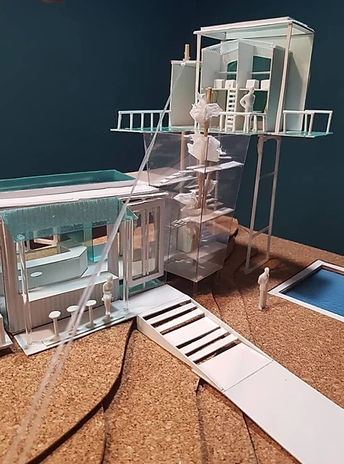

3. CAFE MODEL (SCALE 1:50)
4. FOOD & DRINK PLATING
FINAL BOARD 2A0
that is section model (project 2)
first board:
ELEVATION -FRONT & BACK
SECTION -AA
PERSPECTIVE
​
second board:
LAYOUT PLAN -gf, ff,sf
PERSPECTIVE
3D EXPLORE- AXONOMETRIC
REFLECTION
​
From this project, i learnt that a designer needs to considerate a lot of problems, example the site , the environment ,the size of the cafe, furniture. How to create a compact living , what is the function of the furniture and the attractive of the cafe.
​
During the Final Review,the panel gave me some feedback that actually i have considerate before, but after that i not achieve it. So i will improve my thinking and be more creative ideas.
​
Because this project, i also learnt SKETCH UP myself, at the beginning i felt very hard but now, i feel it is easily than REVIT. The boards i used SKETCH UP , AUTOCAD and PHOTOSHOP.
​

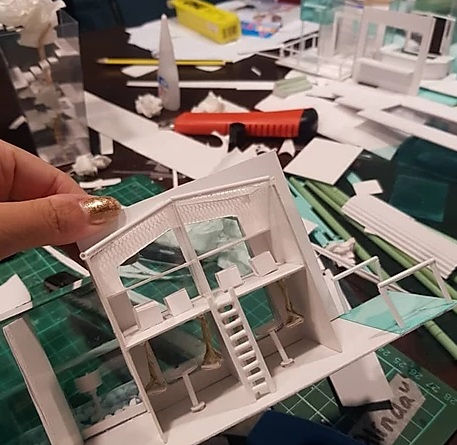

material of the model:
modelling board, pvc (transparent, green, blue), sticks, mdf base
